Key Feature:
* 1/2.8" low-light CMOS sensor;
4K 8MP resolution3840 x 2160 output; Low illumination 0.01Lux;

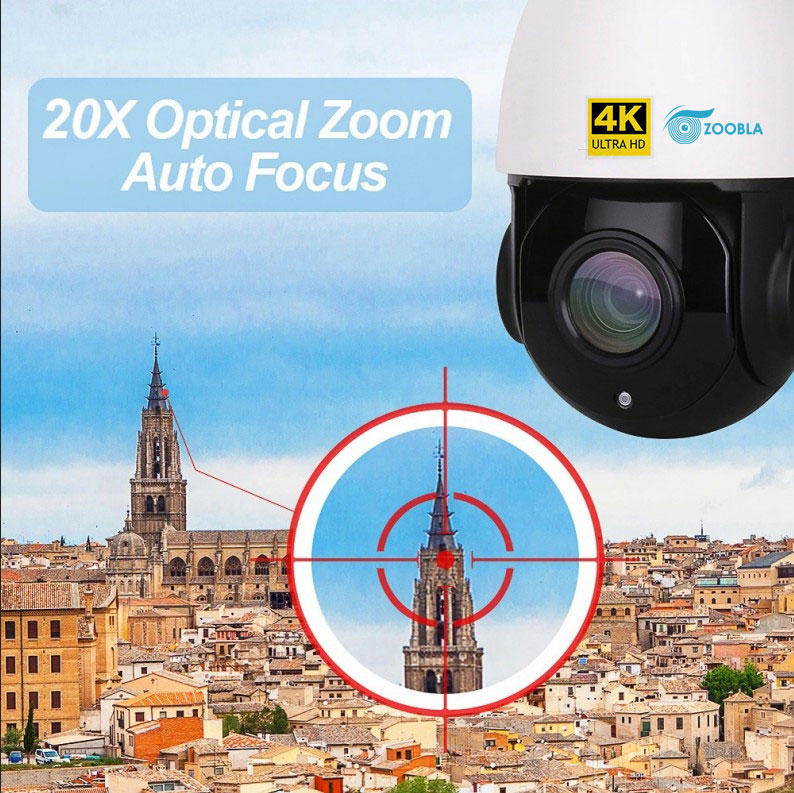

20X Optical Zoom Lens;
* Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT;
D-WDR, Mirror, flip, Defogging;
Multiply Style OSD Overlay, Motion Detection, Privacy Mask;
RTSP and Ovif 17.06 compatible with many third-party NVR;
* H.264/H.265 dual-stream media server;
Easy-to-use P2P Cloud service;
Support user authentication, video data encryption;
Support Alarm Snapshot to Email and FTP;
* Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access;
Lightning protection 4000V;
Strong water-proof housing IP66;
8 pcs Array IR Led, IR distance 80-100 meters.
Model | YC-M608IR-V2-20X-BTJ |
Camera |
Image Sensor | 1/2.8" CMOS |
Effective Pixels | 8 megapixels |
Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
Day/Night | Auto/Color/(B/W)/Timing |
WDR | Digital WDR |
White Balance | Auto/Manual |
BLC /HLC | Support |
DNR | 2D/3D DNR |
Other | AGC,Motion Detection,Privacy Mask,Flip,OSD overlay |
Encode |
Video Standard | H.264/H.265 |
Video Resolution | MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. |
Video Bitrates | 512Kbps - 12Mbps, VBR/CBR |
Audio Standard | G.711-u/G.711-a |
Built-in Mic | Internal |
IR Leds |
IR Led | 8pcs array IR Led (4 near + 4 far) |
IR Distance | 80-100 M |
Lens |
Focal length | 4.7-94mm |
IRIS | F1.6-3.5 |
View angle | 64 - 2.9 ° |
Zoom | 20X Optical Zoom |
Optional Function |
High power PoE |
PTZ |
Pan/Tilt Range | Pan: 0° ~ 360°; Tilt: 0° ~ 90° |
Preset Point | 128 |
Control Speed | Pan: 0.5° ~40° /s; Tilt: 0.5° ~40° /s |
A-B Scanning | Support |
Auto Cruising | Support 8 groups |
Power on Action | Preset/Scan/Cruise |
Power-off Recovery | Support |
Network Services |
Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
P2P | Yes |
Web | IE , Firefox (32bit esr), etc. |
Media | CMS, Android, IOS |
OVIF | 17.06 compatible |
General |
Network Port | 1-RJ45, 100Mbps, PoE 48V in |
Power Supply | 12 VDC ± 10% 2A |
Power Consumption | < 20 W |
Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
Size | Φ137(mm)×234(mm) |
Weight | 2.3kg |

Danale mobile app for Android & iOS
Please download Zoobla app in Google Play or Apple store. It's very convenient to manage the image in your mobile.

AJ Device search Tool
AJ Device tools for IP address searching, set up IP address, reboot IPC, updating firmware, image viewing, etc.

IPC setting/image viewing in IE (web browser)
Working with Internet Explorer web browser to access the camera’s web interface, type in the IP camera’s IP address in Internet Explorer’s URL bar to gain access to the login page,support camera different setting and operation.

UC Central Management Software (CMS)
Our Central Management Software with many functions for IP Camera management. It supports video viewing, record query, configuration management, etc.
Category: Analog Cameras
Sub Category: PTZ
