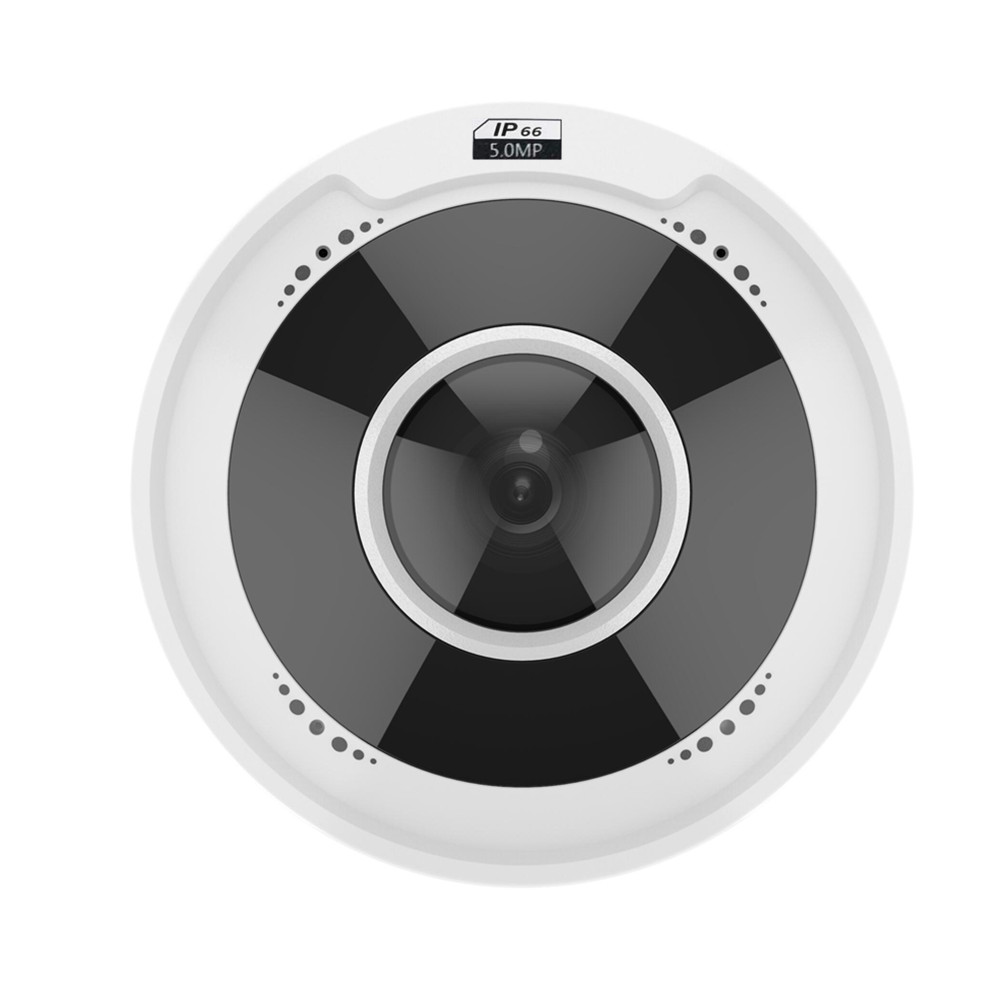

YC-YS815SB

Camera

Image sensor

1/2.8", progressive scan, 5.0 megapixel, CMOS

Lens

1.4mm,F2.0

DORI Distance

Lens

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

1.4mm

31.5

12.6

6.3

3.2

Angle of View

360°

Shutter

Auto/Manual, shutter time: 1~1/100000 s

Minimum Illumination

Colour: 0.01 Lux (F2.0, AGC ON)

0 Lux with IR

Day/Night

IR-cut filter for day & night function

S/N

>55dB

IR Range

UP to 10m (33ft)

wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video

Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream: 5MP (2592*1944): Max.30fps;

Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 8 OSDs

ROI

Up to 8 areas

Privacy Mask

Up to 4 areas

Motion Detection

Up to 4 areas

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8 KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

OVIF (Profile S, Profile G, Profile T), API

Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Live View Display

Mount Type

Support table, wall, and ceiling

Decoding Mode

Support software decoding

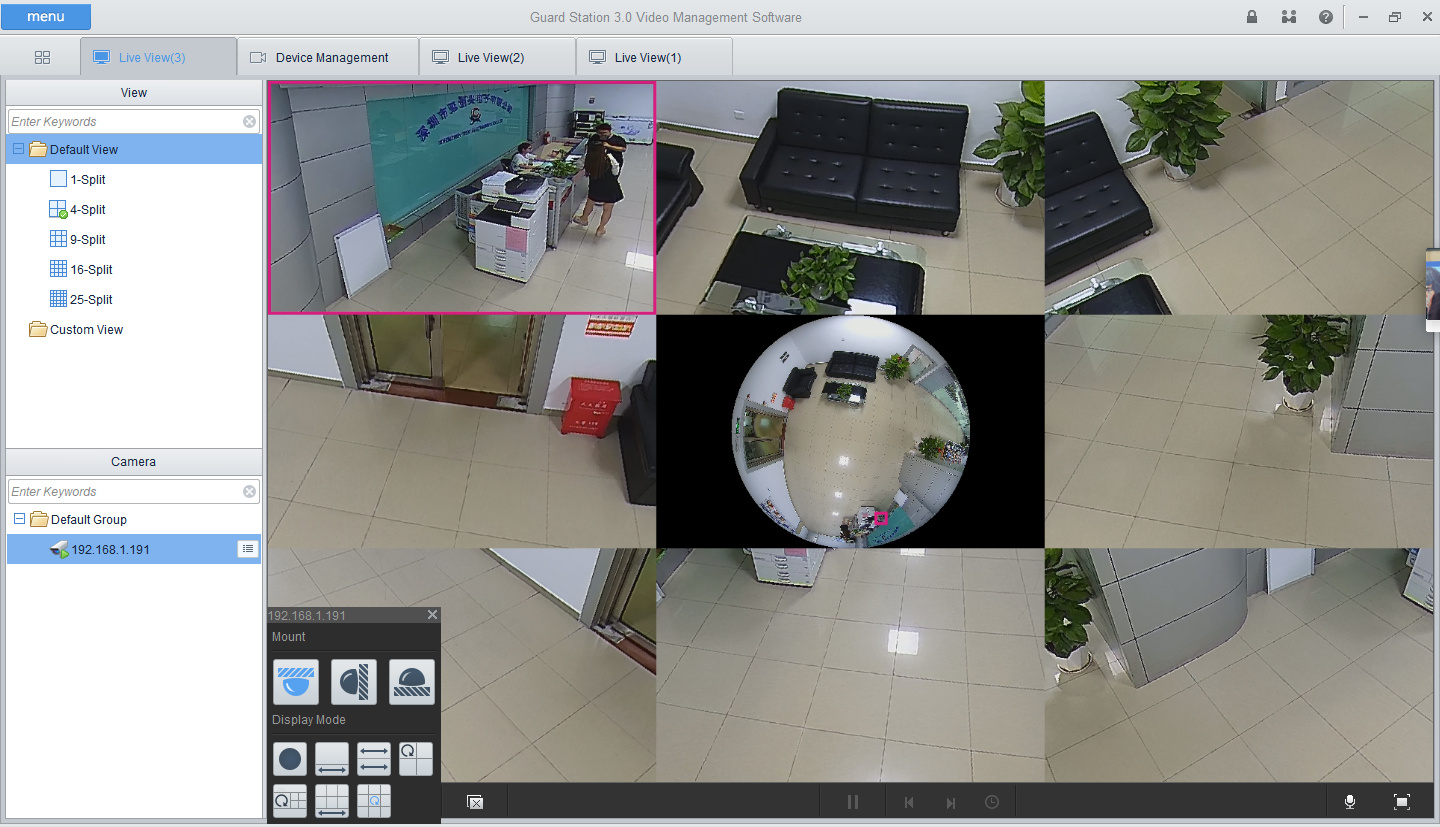

Display Mode

11 display modes in total

Software decoding:

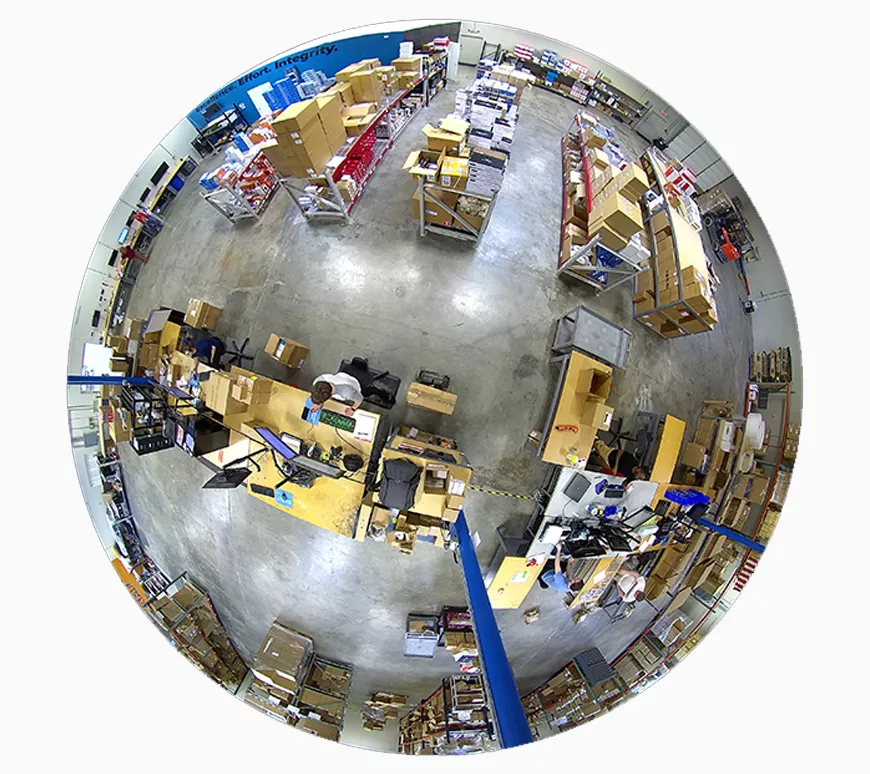

Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ

Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ

Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ

Interface

Audio I/O

Input: impedance 35 kΩ; amplitude 2 V [p-p]

Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O

1/1

Built-in Mic

Supported 2

Network

1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet

Certifications

Certifications

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15

General

Power

DC12V±25%,PoE (IEEE 802.3af)

Power consumption: Max. 8.5W

Dimensions (Φ × H)

Φ125 × 44 mm (Φ4.9" × 1.7")

Net Weight

0.36kg (0.79lb)

Material

Metal + Plastic

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

surge protection

4KV

Ingress Protection

IP66

Vandal Resistant

IK10

Reset Button

Supported
