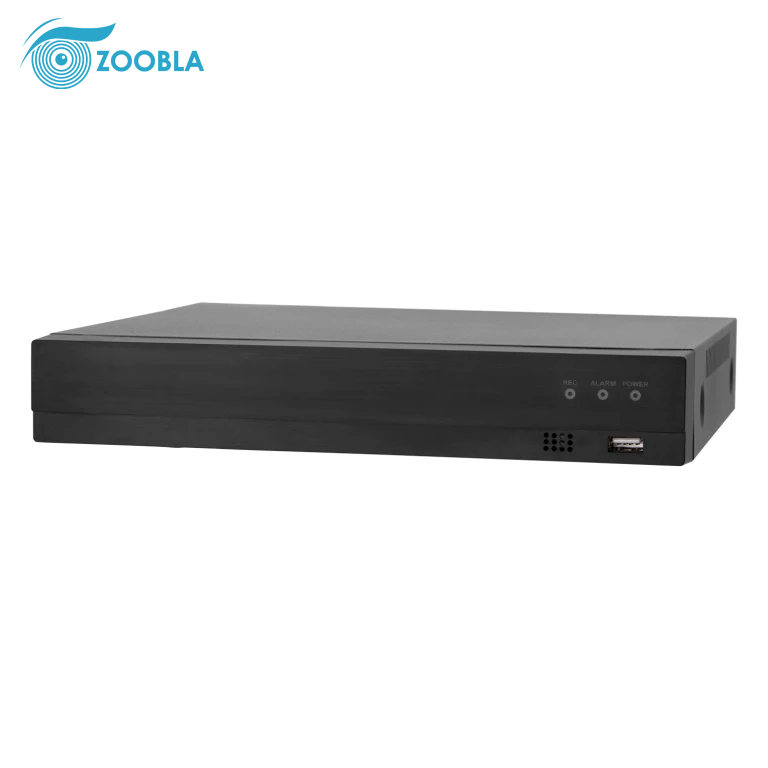

16CH 32 port POE NVR 8MP24h full color camera bullet camera surveillance system Besview
- $50$80
- 85 in stock
SUPERIOR PRODUCTS
2 YEAR WARRANTY
45 DAY MONEY BACK
GUARANTEE
SUPPORT
FREE TECHNICAL SUPPORT
FREE SHIPPING
ON ALL ORDERS OVER $150
SKU:BC-N1682-IC11-P16
Category:Network Video Recorder
| Protocol: | RTSP、onvif、I9 |
| Mobile View : | Support IOS and android mobile view |
| Display mode: | Mode 1:Support 4CH IPC input（8MP/D1+4 CH preview+4CH playback） Mode 2:Support 9CH IPC input（8MP/D1+9CH preview+9 CH playback） Mode 3:Support 16CH IPC input（8MP/D1+16CH preview+16CH playback） Mode 4:Support 25CH IPC input（8MP/D1+25CH preview+ 9 CH playback） |
| Smart Function: | Target count, E-fence, line crossing, absent alarm, retrograde motion detection, human detection |
| Video | |
| Support Playback: | Normal mode（4CH IPC） ：4CH@1080P / 1CH@4K Normal mode（9CH IPC） ： 9CH@D1 / 8CH@3MP+7*D1 / 6CH@5MP+5*D1 / 4CH@1080P / 1CH@4K Normal mode（16CH IPC）：16CH@D1 / 9CH@D1 / 8CH@3MP+7*D1 / 6CH@5MP+5*D1 / 4CH@1080P / 1CH@4K Normal mode（25CH IPC）：25CH@D1 / 16CH@D1 / 9CH@D1 / 8CH@3MP+7*D1 / 6CH@5MP+5*D1 / 4CH@1080P / 1CH@4K |
| Incoming bandwidth: | 80Mbps |
| Compression format: | H.265+/H.265/H.264 |
| Recording resolution: | 4K/5MP/3MP/1080P/D1/VGA |
| Audio compression : | G.711A/U |
| Recording and playback | |
| Recording mode: | Manual/fixed time/alarm recording |
| Playback ability: | 1CH 4K/4Ch1080P/16CH sub-code |
| Playback mode: | Regular playback, event playback, external file playback |
| Storage and backup | |
| Storage Port : | 2x SATA |
| HDD capacity: | Max 10T |
| Storage: | Local HDD, network HDD IPSAN |
| Backup mode: | USB protable HDD, memory |

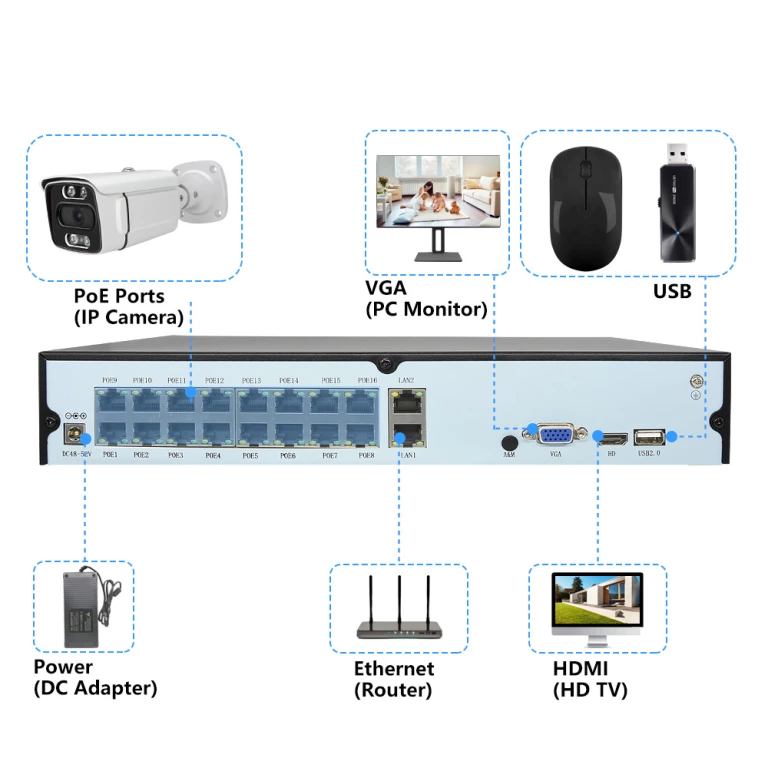

| External port | |
| Network Port: | 2 x RJ45 100M port |
| POE port: | 16CH,10/100Mbps,IEEE802.3af,250W |
| USB port: | 2 x USB2.0 |
| General | |
| Power | DC52V 4.62A |
| Power consumption | ≦10W（without HDD） |
| Working temperature/humidity | -10°C ~ 55°C/10﹪-90﹪ |
| Size(mm) | 326(L)x235(W)x52(H)mm |
| Weight/pcs（g) | Net weight: 1.7Kg; Gross Weight: 1.92Kg（ without HDD） |
Category: Network Video Recorder
Sub Category: 8 Channel
Colour:
white,
Black,
red,
green,
