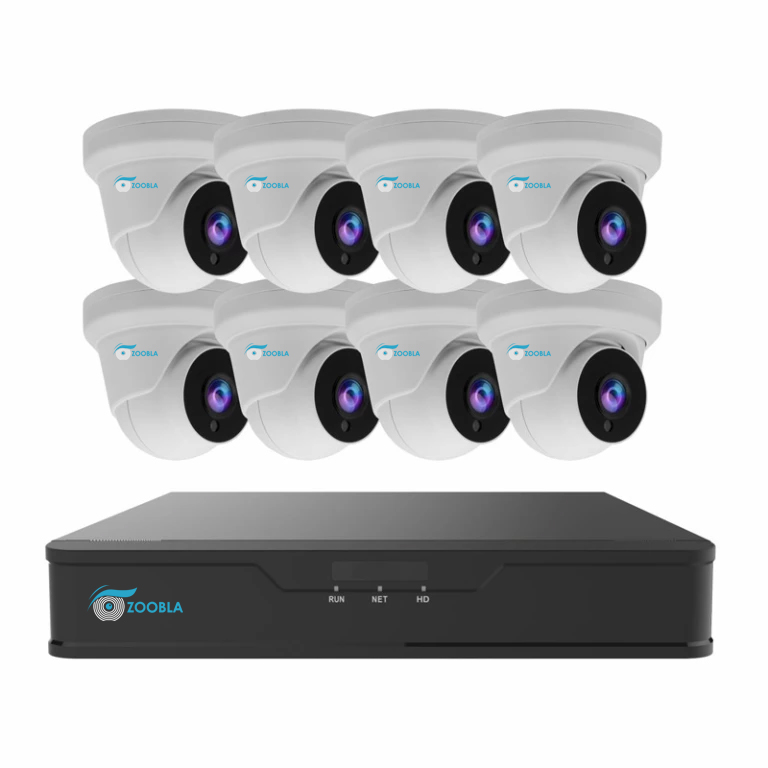

Original Uniview OEM H.265 8CH 4K POE NVR 5MP/8MP IPC KIT CCTV Wired Camera System
- $485$500
- 40 in stock
SUPERIOR PRODUCTS
2 YEAR WARRANTY
45 DAY MONEY BACK
GUARANTEE
SUPPORT
FREE TECHNICAL SUPPORT
FREE SHIPPING
ON ALL ORDERS OVER $150
SKU:G711U / G711A
Category:Network Video Recorder
Image Sensor: | Sony335 5mp@25fps/Sony415 8mp@20fps |
Signal System: | PAL/NTSC |
Min. Illumination: | Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR |
Shutter Time: | 1/25 s to 1/100,000 s |
Lens: | 3.6mm fixed lens |
Day&Night: | IR cut filter with auto switch |
Image Enhancement: | BLC/3D DNR/D-WDR |
Motion Detection | Support |
Privacy Protection | Support(4 Self-customized Areas) |
Wather-Proof: | IP66 |
Illumination for Infrared Switching: | 0.5~3Lux |
Infrared Wavelength: | 850nm |
Lowest Illumination: | 0 Lux(IR ON) |
IR Range: | 6PCS LEDS//15m IR |
Compression Standard: | |
Video Compression: | H.265/H.264/MJPEG |
Video Bit Rate: | 32Kbps~12288Kbps(CBR/VBR Selectable) |
Audio Compression: | G711U / G711A |
Dual Streams: | Yes |
Triple Streams: | 5MP:No/8MP:Yes |
Image Settings: | 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App |
Day/Night Switch: | Auto(Passive Mode)/Day/Night/Auto(Active Mode)/Time |
Network: | |
Network Protocols: | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Search(Support P6S IP camera, DVR, NVS etc.) |
General Function: | Anti-Flicker, heartbeat, password protection, privacy mask, Watermark |
System Compatibility: | ONVIF(2.4+ Media2)/P6S |
On-line Viewing | Max. Support 6 Users Simultaneously |
Interface: | |
Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface |
RCA Audio Interface: | RCA Audio input/output Interface (Optional) |
DC Power Plug: | DC Power Femate Interface |
General: | |
Operating Conditions: | -10 °C ~ 60 °C |
Humidity 95% or less (non-condensing) | |
Power Supply: | 12 V DC ± 10%/PoE(Optional) |
Power Consumption: | Max Power Comsumption Less than 8W (When the infrared lamps turn on) |
Weight: | 0.45KG |
8CH 4K PoE NVR | |
Model | BC-NVR301-08E2-P8 |
Video/Audio Input | |
IP Video Input | 8-ch |
Two-way Audio Input | 1-ch, RCA |
Network | |
Incoming Bandwidth | 80Mbps |
Outgoing Bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI: | |
HDMI/VGA Output | 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA: | |
| 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, RCA |
Synchronous Playback | 8-ch |
Corridor Mode Screen | 3/4/5/7/9 |
Decoding | |
Decoding format | Ultra 265/H.265/H.264 |
Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30 |
Hard Disk | |
SATA | 1 SATA interface |
Capacity | up to 6TB for each disk |
External Interface | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 |
PoE | |
Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
Max Power | Max 30W for single port |
| Max 75W in total | |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
General | |
Power Supply | 52V DC |
| Power Consumption: ≤9 W (without HDD) | |
Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") |
Weight (without HDD) | 1kg (2.20 lb) |
Category: Network Video Recorder
Sub Category: 4 Channel
Colour:
white,
Black,
Size:
Small,
Large,
