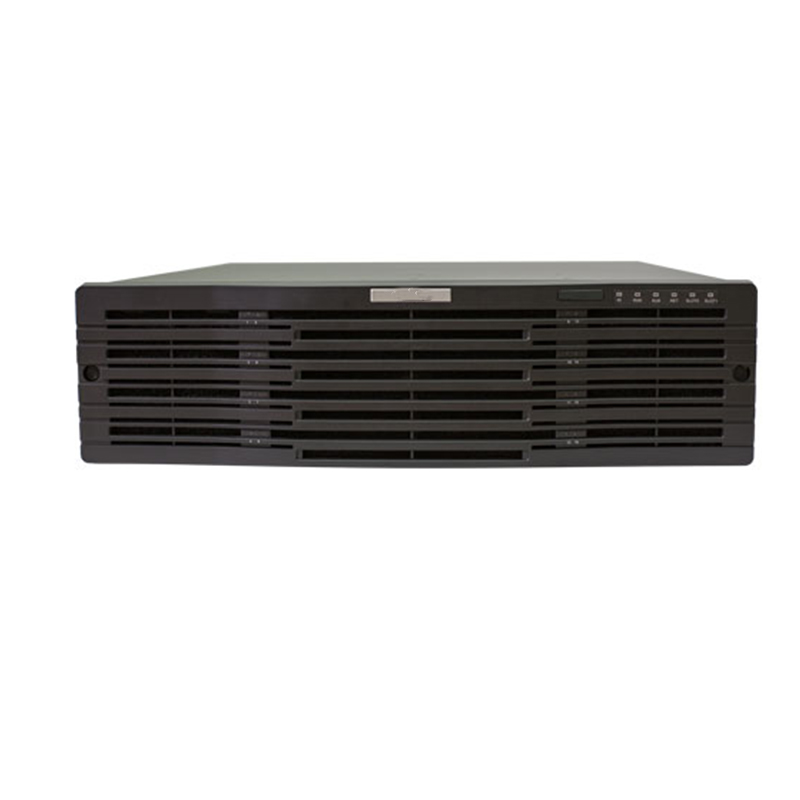

64/128 channel Ultra 3U NVR Support 16-HDD RAID Security System Network Video Recorder

$1800$1840
50 in stock

Add to Wishlist

SUPERIOR PRODUCTS

2 YEAR WARRANTY

45 DAY MONEY BACK

GUARANTEE

SUPPORT

FREE TECHNICAL SUPPORT

FREE SHIPPING

ON ALL ORDERS OVER $150

SKU:64/128

Category:Network Video Recorder

64/128 channel Ultra 3U NVR Support 16-HDD RAID Security System Network Video Recorder

• Support Ultra 265/H.265/H.264 video formats
• 64/128-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
• HDMI1, HDMI2 and VGA independent outputs provided
•  Up to 12 Megapixels resolution recording
• Redundant power supply optional
• 2 decoding cards optional, up to 12-ch HDMI
• Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
• 16 SATA HDDs, up to 10TB for each HDD
• Support 2 miniSAS Interfaces
• Support 12V power output
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare

Specification
Model
NVR316X-64R
NVR316X-128R
Video/Audio Input
IP Video Input
64-ch
128-ch
Two-way Audio Input
1-ch, BNC
Network
Incoming Bandwidth
384Mbps
512Mbps
Outgoing Bandwidth
384Mbps
Remote Users
128
Protocols
P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output






HDMI/VGA Output
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI1：
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI2:
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output
1-ch, BNC
Synchronous Playback
16-ch
Corridor Mode Screen
3/4/5/7/9/10/12/16/32
Decoding
Decoding format
Ultra 265, H.265, H.264
Live view/Playback
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability
4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1
Hard Disk
SATA
16 SATA interfaces
Capacity
up to 10TB for each HDD
eSATA
1 eSATA interface
miniSAS
2 miniSAS ports
Smart
VCA Detection
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto
tracking
VCA Search
Face search, Behavior search
Statistical Analysis
People counting
Disk Array
Array Type
RAID 0/1/5/6/10/50/60

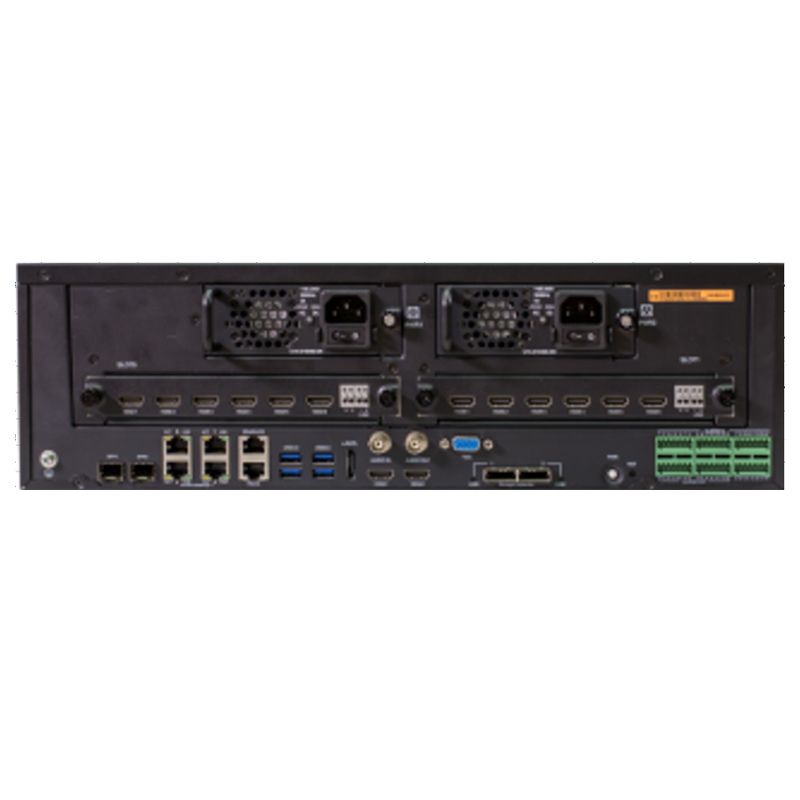

External Interface
Network Interface
4 RJ-45 10M/100M/1000M adaptive Ethernet Interface
2 1000M SFP Ethernet Interface
Serial Interface
1 x RS232, 1 x RS485
USB Interface
Rear panel: 4 x USB3.0
Alarm In
24-ch
Alarm Out
8-ch
Decoding Card (optional)
2 slots (4-ch HDMI or 6-ch HDMI outputs per card)
Power Output
12V
General
Power Supply
100 ~ 240V AC
Power Consumption: ≤ 50 W( without HDD )
Working Environment
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Chassis
19-inch rack-mounted 3U chassis
Dimensions
482mm ×477mm × 131mm (18.8"× 19.0" ×5.1")
Weight ( without HDD )
≤ 10 Kg ( 22.05 lb )

Category: Network Video Recorder

Sub Category: 128 Channel

Size: Large,

Please Rate your Experience
5 4 3 2 1 for="rating-0">0

Name

Comment

Thank you for your review

Contact Us

We’ll help you design, deploy, and upgrade solutions to meet business specific needs and budgets.

Model	NVR316X-64R	NVR316X-128R
Video/Audio Input
IP Video Input	64-ch	128-ch
Two-way Audio Input	1-ch, BNC
Network
Incoming Bandwidth	384Mbps	512Mbps
Outgoing Bandwidth	384Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	VGA:
	1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
	HDMI1：
	4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
	HDMI2:
	4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, BNC
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Decoding
Decoding format	Ultra 265, H.265, H.264
Live view/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1
Hard Disk
SATA	16 SATA interfaces
Capacity	up to 10TB for each HDD
eSATA	1 eSATA interface
miniSAS	2 miniSAS ports
Smart
VCA Detection	Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search	Face search, Behavior search
Statistical Analysis	People counting
Disk Array
Array Type	RAID 0/1/5/6/10/50/60
External Interface
Network Interface	4 RJ-45 10M/100M/1000M adaptive Ethernet Interface
	2 1000M SFP Ethernet Interface
Serial Interface	1 x RS232, 1 x RS485
USB Interface	Rear panel: 4 x USB3.0
Alarm In	24-ch
Alarm Out	8-ch
Decoding Card (optional)	2 slots (4-ch HDMI or 6-ch HDMI outputs per card)
Power Output	12V
General
Power Supply	100 ~ 240V AC
	Power Consumption: ≤ 50 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Chassis	19-inch rack-mounted 3U chassis
Dimensions	482mm ×477mm × 131mm (18.8"× 19.0" ×5.1")
Weight ( without HDD )	≤ 10 Kg ( 22.05 lb )

64/128 channel Ultra 3U NVR Support 16-HDD RAID Security System Network Video Recorder

SUPERIOR PRODUCTS

45 DAY MONEY BACK

SUPPORT

FREE SHIPPING

SKU:64/128

Category:Network Video Recorder

64/128 channel Ultra 3U NVR Support 16-HDD RAID Security System Network Video Recorder

Contact Us

RELATED PRODUCTS

UltraHD 8MP Security Camera System

IN STOCK

$150 $200

H.265 P2P 128 Channel 256CH 24 HDDs...

IN STOCK

$3500 $3530

2021 YCX UNV OEM Uniview 32CH NVR C...

IN STOCK

$240 $250

Uniview NVR 8ch 16ch 32ch 302-32S-P...

IN STOCK

$100 $150

Original Uniview OEM H.265 8CH 4K P...

IN STOCK

$485 $500

16CH 32 port POE NVR 8MP24h full co...

IN STOCK

$50 $80

16CH NVR cctv camera system 24h col...

IN STOCK

$350 $400

5MP Manufactory Direct Auto Trackin...

IN STOCK

$150 $170

Original Junction Box For CCTV Came...

IN STOCK

$260 $290

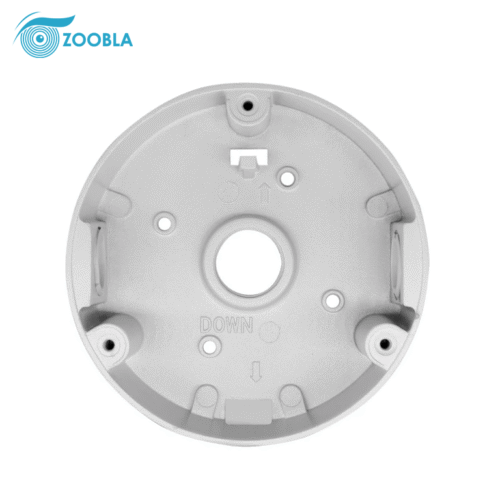

Zoobla Junction Box Deep BaseFor CC...
