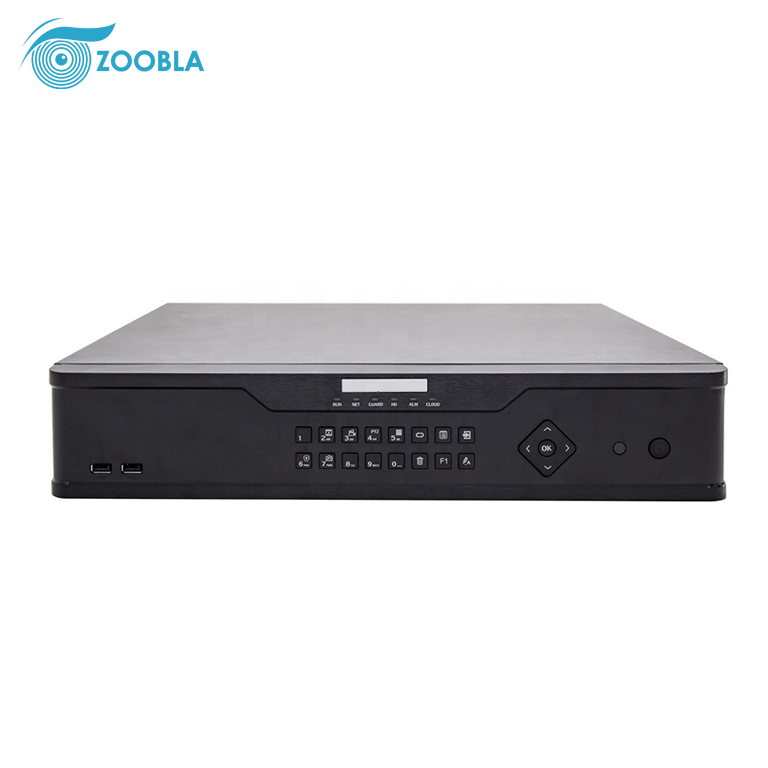

Uniview NVR 8ch 16ch 32ch 302-32S-P16-NB 32 Channel 4K 8MP CCTV Security Camera System PoE Video Recorder NVR
- $100$150
- 50 in stock
SUPERIOR PRODUCTS
2 YEAR WARRANTY
45 DAY MONEY BACK
GUARANTEE
SUPPORT
FREE TECHNICAL SUPPORT
FREE SHIPPING
ON ALL ORDERS OVER $150
SKU:NVR304-32S-P16
Category:Network Video Recorder
| Model | NVR304-32S-P16 | |||||
| Video/Audio Input | ||||||
| IP Video Input | 32-ch | |||||
| Two-way Audio Input | 1-ch, RCA | |||||
| Network | ||||||
| Incoming Bandwidth | 160Mbps | |||||
| Outgoing Bandwidth | 64Mbps | |||||
| Remote Users | 128 | |||||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |||||
| Video/Audio Output | ||||||
| HDM/VGA Output | HD output:4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60,1024X768@60 | |||||
| VGA: | ||||||
| 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 | ||||||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Audio Output | 1-ch, RCA | |||||
| Synchronous Playback | 32-ch | |||||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |||||
| Decoding | ||||||
| Decoding format | Ultra265/H.265/H.264 | |||||
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30,16 x 720P@30, 32 x D1@30 | |||||
| Hard Disk | ||||||
| SATA | 4 SATA interfaces | |||||
| Capacity | Up to 14TB for each disk | |||||
| External Interface | ||||||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |||||
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | |||||
| Serial Interface | 1 x RS485 | |||||
| Alarm In | 16-ch | |||||
| Alarm Out | 4-ch | |||||
| PoE | ||||||
| Interface | 16 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |||||
| Max Power | Max 30W for single port Max 240W in total | |||||
| Supported Standard | IEEE 802.3af/at | |||||
| General | ||||||
| Power Supply | 100 ~ 240 V AC, Power Consumption: ≤15W(without HDD) | |||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |||||

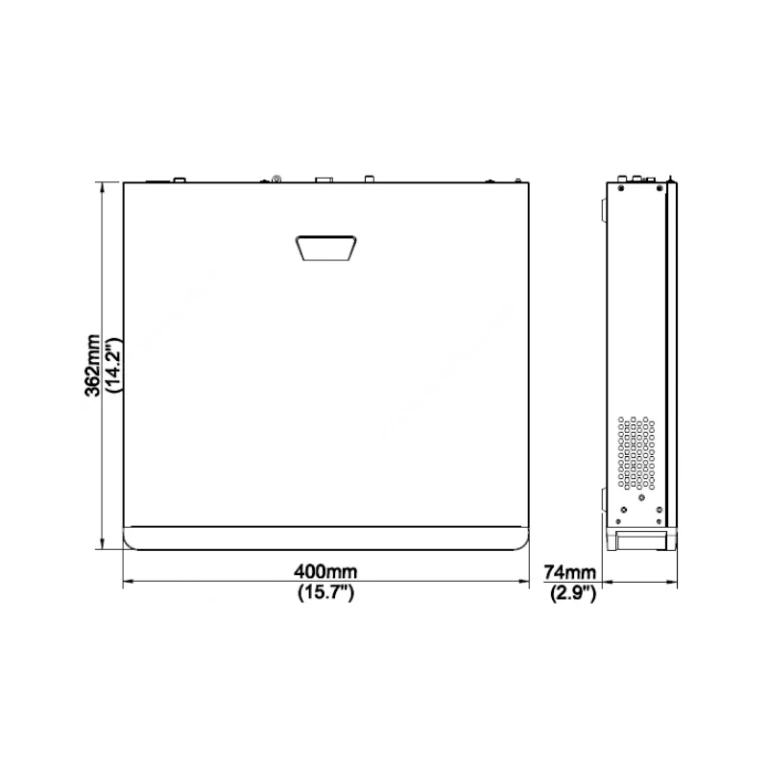

| Dimensions (W×D×H) | 400mm ×362mm × 74mm (15.7" × 14.2" ×2.9") | |||||
| Weight (without HDD) | 5.7kg (5.29lb) | |||||
