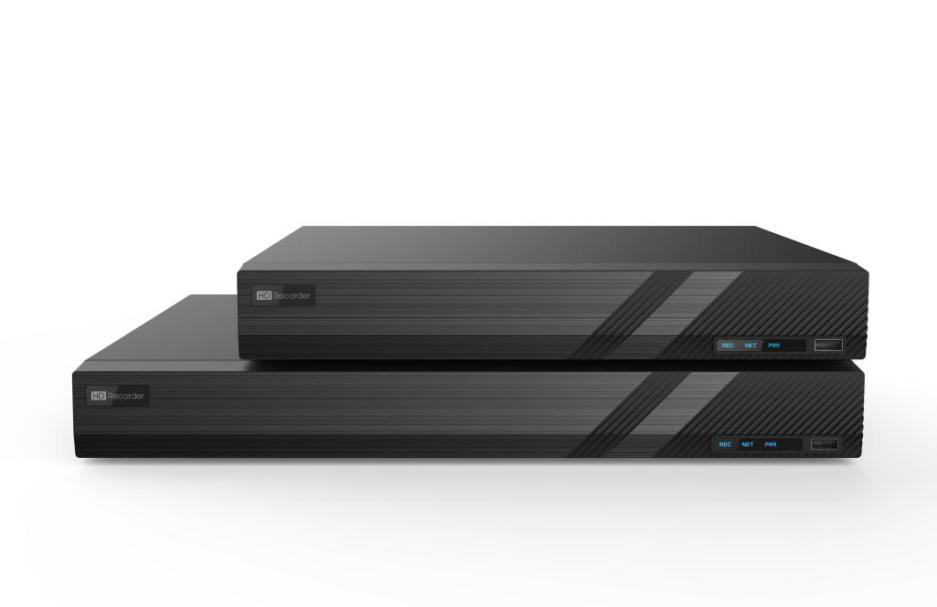

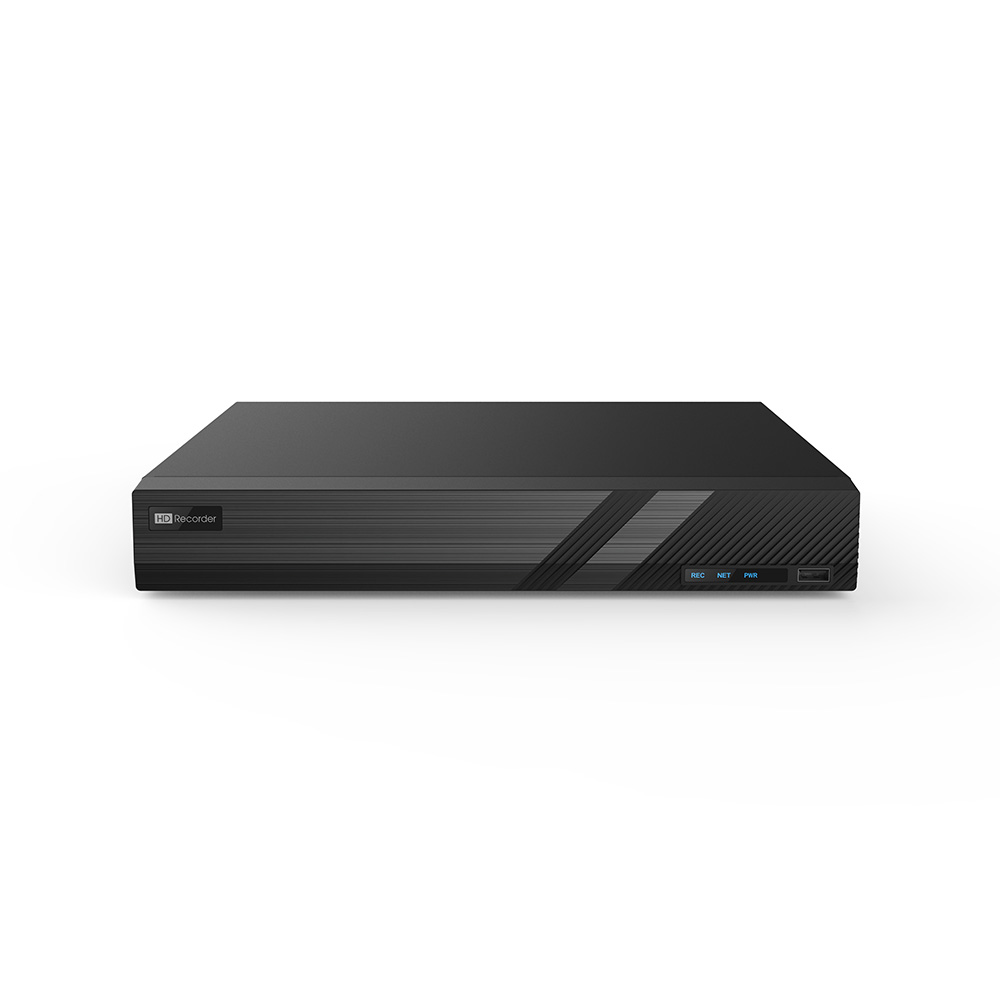

H.265 32CH 4HDDs NVR 16 POE Ports

> Support 32 CH 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P /720P / 960H / D1 /CIF IP video input

> H.265S/H.265+/H.265/H.264 coding

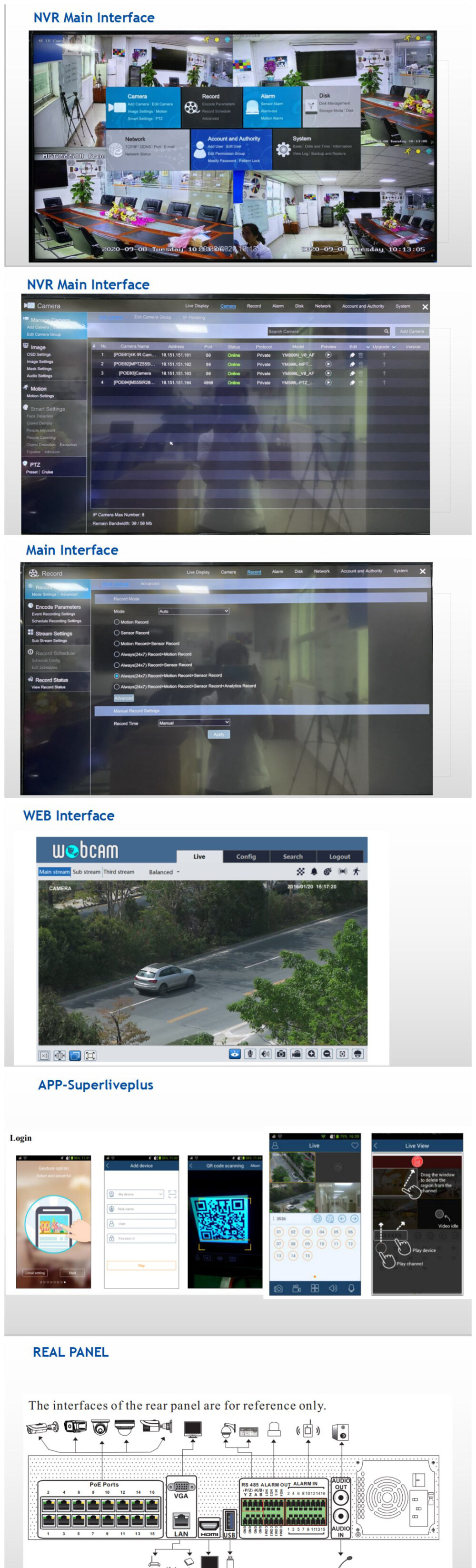

> Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse

> Multi-mode recording: manual / timed / motion / sensor / POS / AI recording

> Playback : 16 CHs simultaneous playback

> Search : time slice, time, event, tag search and smart search

> Supports face detection and comparison > Supports multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video tampering, etc. > Supports POS information overlay on live view and playback

> Express and flexible backup via USB, network and so on

> Pentaplex : preview, record, playback, backup and remote access
> DHCP, DDNS, PPPoE network protocol and CMS supported

> Remote control via IE or CMS : preview, playback, backup, PTZ and configuration

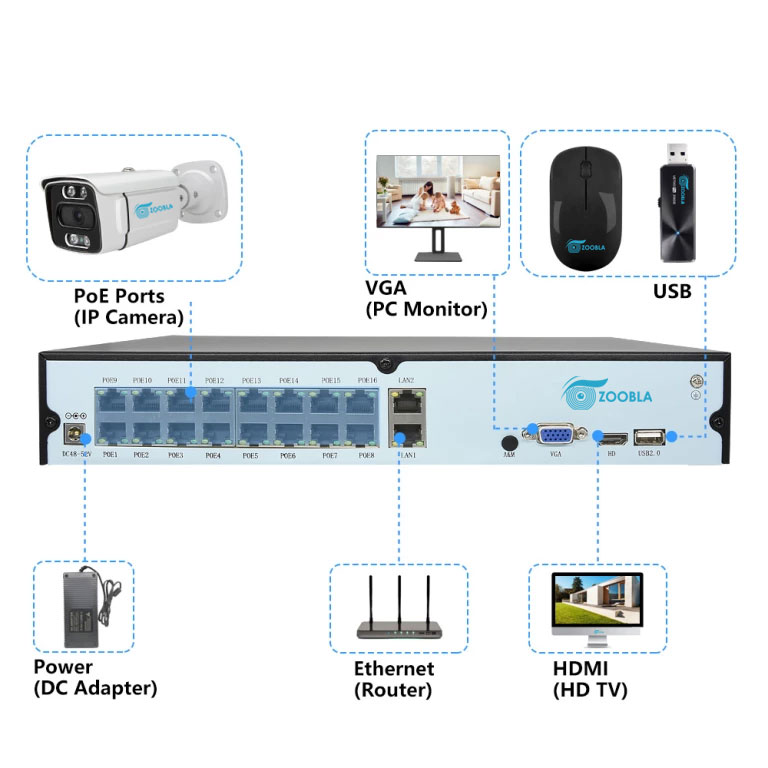

> 16CH PoE network ports, support IPC direct connection to NVR; support PoE power supply

> Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
> Multi-user online simultaneously

> Authorization management, log view and device status view
> 4K output, true high resolution display

> Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

> Support NAT function and QR Code scanning by mobile phone and PAD

> Powerful smart phone & Pad surveillance with iOS and Andriod OS

Technical Parameters

Model		YC-NVR6432G-P16-AI
System	OS	Embedded Linux
Video	Network Input	32 CH IPC input
	Incoming Bandwidth	256Mbps
	Outgoing Bandwidth	256Mbps
	Network Input Resolution	12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P/ 1280 × 1024 / 960P / 720P / 960H / D1 /CIF
	Output	HDM × 1 : 3840×2160@60fps/3840×2160@30fps/ 1920×1080/1280×1024/1024×768 VGA × 1 : 1920×1080/1280×1024/1024×768
	Compression	H.265S/H.265+/H.265/H.264
Audio	Network Input	32 CH IPC audio input
	2-way Audio	RCA × 1
	Local Output	RCA × 1
	Compression	G.711(U/A)
Record	Record Stream	Dual stream recording
	Resolution	12MP@20fps; 8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/ 720P/960H/D1/CIF@30fps(NTSC)/25fps(PAL)
	Mode	Manual/timed/motion/sensor/POS/AI recording
	ANR	Automatic network replenishment (Yes)
Decoding Capability	Live View/ Playback	1CH 12MP/4CH 5MP/9CH 720P/16CH D1
Playback	Simultaneous Playback	Max 16 CH
	Search	Time slice / time / event / tag search
	Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
	Function	Play, pause, FF, FB, digital zoom, etc.
Alarm	Mode	Manual, sensor, motion, exception, smart events
	Input	16 CH local alarm input; supports IPC alarm input
	Output	4 CH
	Triggering	Record, snapshot, buzzer, preset, e-mail, etc.
Face	Channel	32 CH
	Face Picture Database	32 libraries 5000 Face Pictures
	Computing Capability	180 pictures / minute
	Face Picture Search	Search by picture is supported
	Database Management	Add, modify, delete and search face pictures
	Face Picture Adding	Add face pictures through APP, WEB and external import
	External face picture enrollment	Resolution：128 x 128 ～ 1920 x 1080 Size：≤ 70KB Format : jpg&jpeg
	Face Picture Comparison	Supports allow list and block list alarm
	Face Track	Yes
	Map of Face Track	Reolution：2560 x 1920 Size：≤ 512KB Format : jpg&jpeg
	Statistic Graph of Face Information	Bar graph
	Statistic Mode of Face Information	Statistics by day, week, month, quarter as well as customized time period
Video Structure Analysis	Human/Vehicle Classification	Yes
Other Functions	Fisheye	Supports fisheye dewarping via Web Client and mobile APP
	Plate Recognition	Yes
PoE	PoE Port	RJ45 × 16
	Standard	IEEE802.3af
	Output Power	≤ 150W
Network	Interface	RJ45 10 / 100 / 1000 Mbps × 1
	Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVF, etc.
	Client Connection	Max.20 users access
Mobile Device	OS	iOS, Andriod
Storage	HDD Interface	SATA × 4, max 8T per HDD
Backup	Local Backup	U disk, USB mobile HDD
	Network Backup	Yes
Port	RS 485	Yes (full-duplex), connect to PTZ or keyboard
	USB	USB 2.0 × 1 , USB 3.0 × 1
	Remote Controller	Optional
Others	Language	30 languages (like English, French, Arabic, Spanish, etc.)
	Power Supply	ATX 292W
	Consumption	≤ 15W ( without HDD and PoE power supply )
	Dimensions (mm)	440 × 390 × 70 ( W × D × H )
	Working Environment	-10 ～ 50 ℃，10% ～ 90% humidity
	Certificate	CE, FCC
	Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
