5MP Fisheye Fixed Dome Network POE IP Camera Outdoor Security Panoramic Support 120dB true WDR Two Way Audio SD storage

$100$150
150 in stock

Add to Wishlist

SUPERIOR PRODUCTS

2 YEAR WARRANTY

45 DAY MONEY BACK

GUARANTEE

SUPPORT

FREE TECHNICAL SUPPORT

FREE SHIPPING

ON ALL ORDERS OVER $150

SKU:YC-YS815SB

Category:IP Cameras

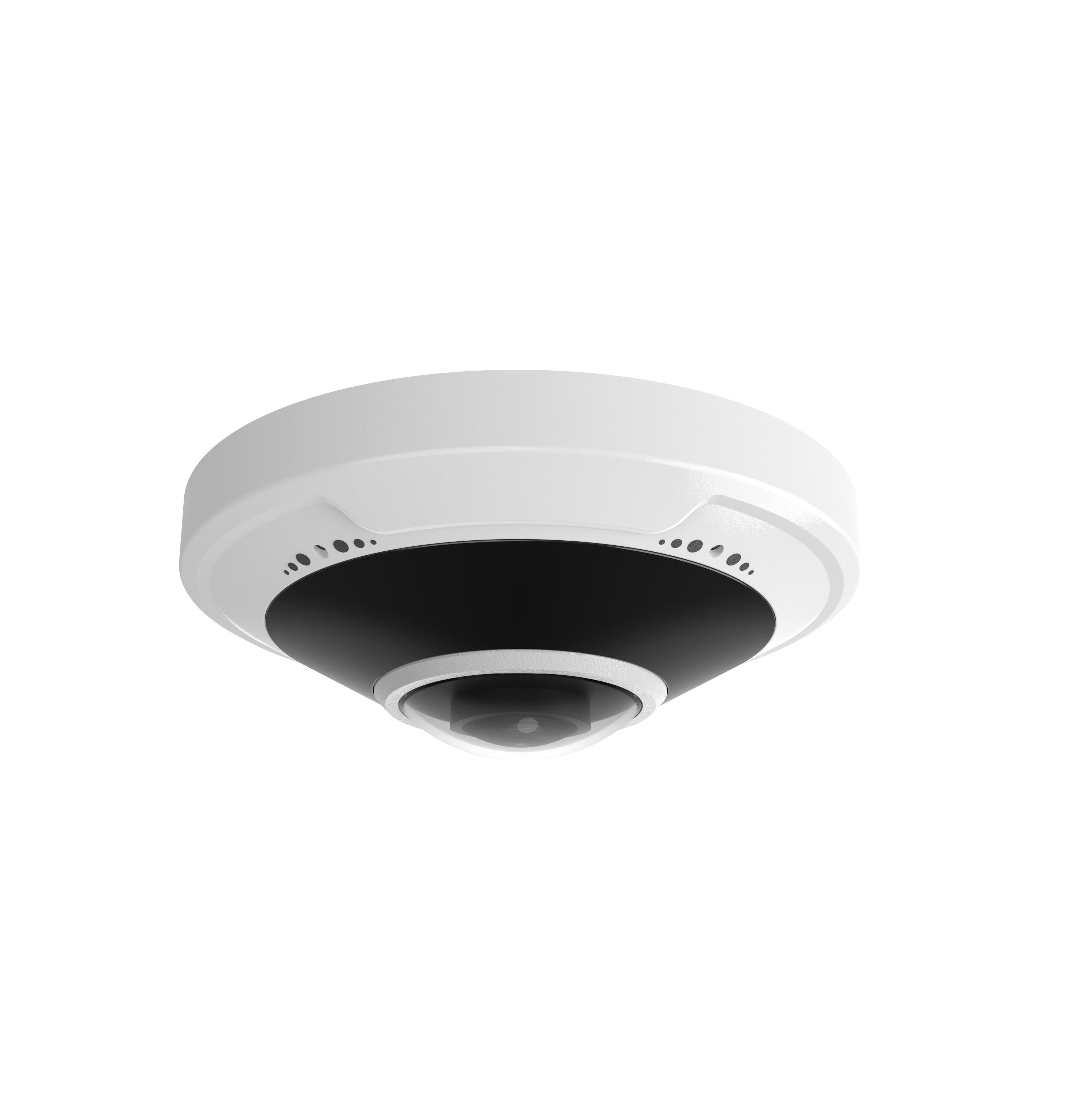

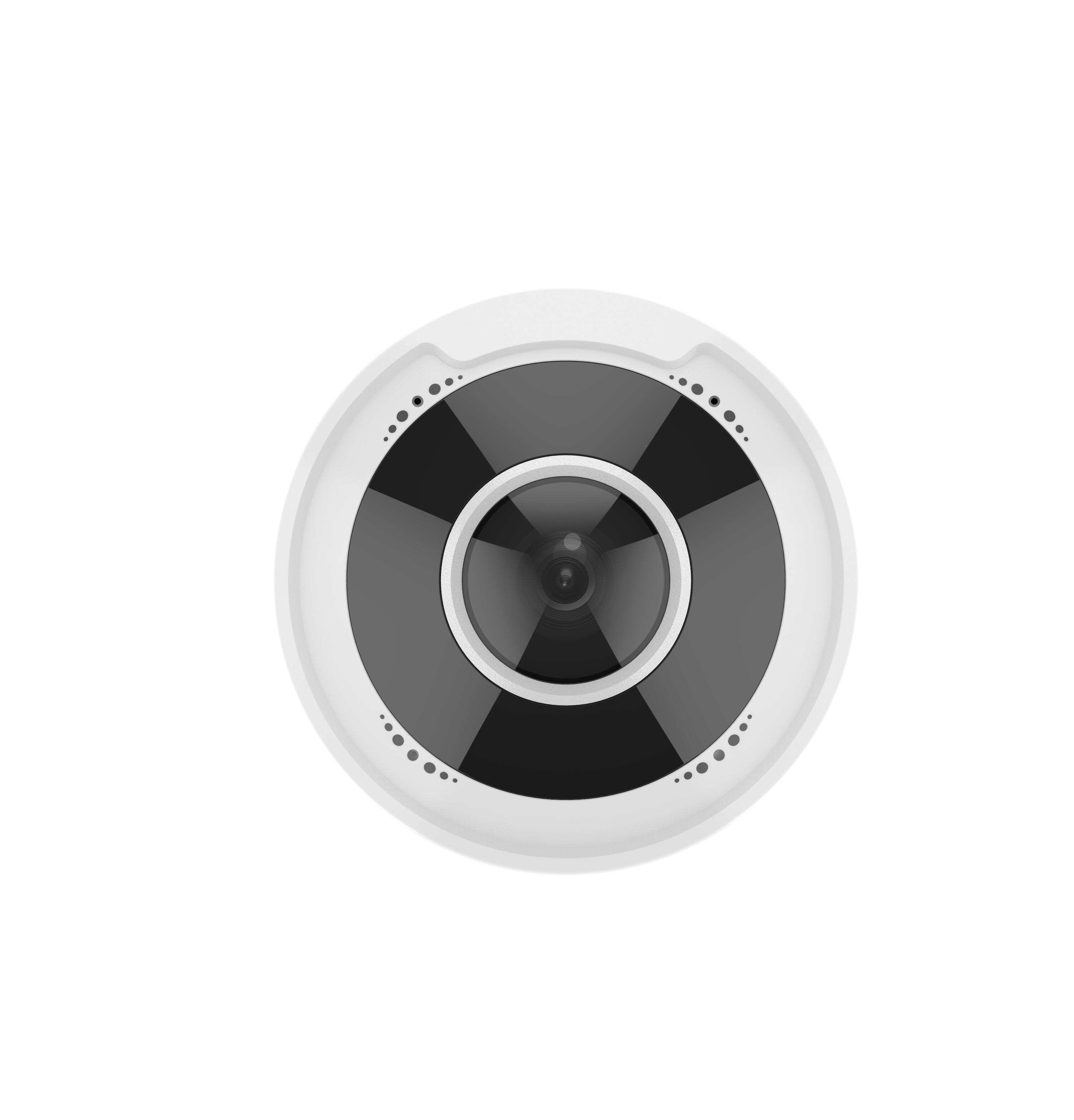

5MP Fisheye Fixed Dome Network Camera

Key Features:Ø High quality image with 5MP
Ø 1/2.8"CMOS sensor
Ø 5MP (2592*1944)@ 30/25fps;
Ø Ultra 265, H.265, H.264, MJPEG
Ø 120dB true WDR technology enables clear image in strong light scene
Ø Built-in 2 Mic, Supports the detection of sounds over longer distances
Ø Alarm:1 in/1 out, Audio: 1 in/1 out
Ø Smart IR, up to 10m (33ft) IR distance
Ø Supports 256GB Micro SD card
Ø IK10 vandal resistant
Ø IP67 protection
Ø Support PoE power supply
Technical Parameters
Model
YC-YS815SB
Camera
Image sensor
1/2.8", progressive scan, 5.0 megapixel, CMOS
Lens
1.4mm@F2.0
DORI Distance
Lens
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
1.4mm
31.5
12.6
6.3
3.2
Angle of View
360°
Shutter
Auto/Manual, shutter time: 1~1/100000 s
Minimum Illumination
Colour: 0.01 Lux (F2.0, AGC ON)
0 Lux with IR
Day/Night
IR-cut filter for day & night function
S/N
>55dB
IR Range
UP to 10m (33ft)
wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
WDR
120dB
Video
Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream: 5MP (2592*1944): Max.30fps;
Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
OSD
Up to 8 OSDs
ROI
Up to 8 areas
Privacy Mask
Up to 4 areas
Motion Detection
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Support
Flip
Normal/Flip Vertical/ Flip Horizontal/180°
Dewarping
N/A
HLC
N/A
BLC
Support
Audio
Audio Compression
G.711
Two-way audio
Supported
Suppression
Supported
Sampling Rate
8 KHZ
Storage
Edge Storage
Micro SD, up to 256GB
Network Storage
ANR, NAS(NFS)
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration
(Profile S, Profile G, Profile T), API
Client
Guard Station / Guard Viewer
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Live View Display
Mount Type
Support table, wall, and ceiling
Decoding Mode
Support software decoding

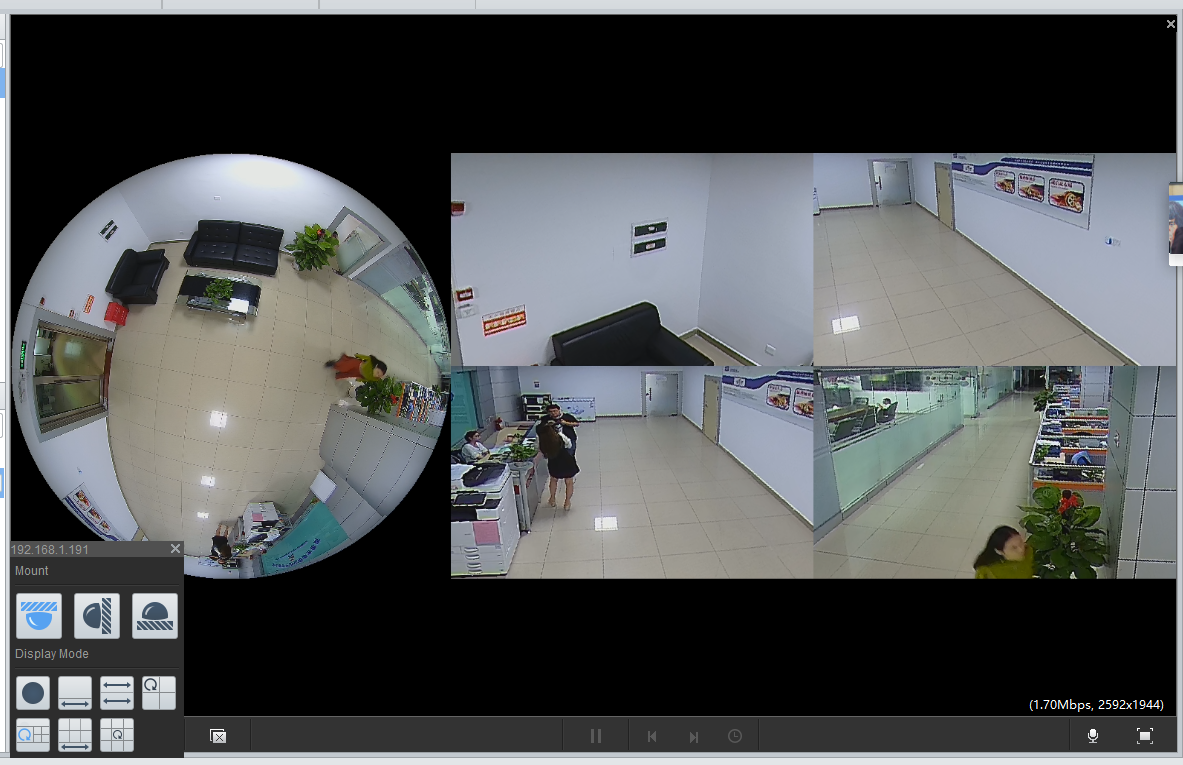

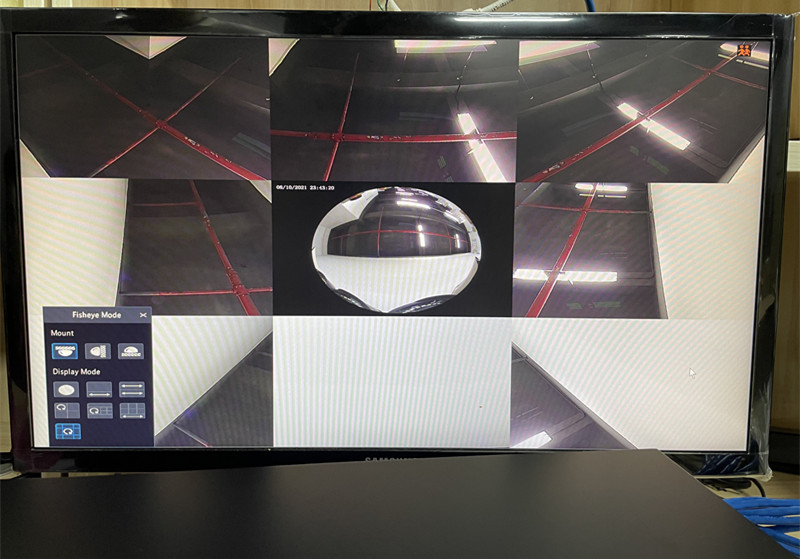

Display Mode
11 display modes in total
Software decoding:
Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ
Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ
Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ
Interface
Audio I/O
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O
1/1
Built-in Mic
Supported 2
Network
1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
Certifications
Certifications
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power
DC12V±25%,PoE (IEEE 802.3af)
Power consumption: Max. 8.5W
Dimensions (Φ × H)
Φ125 × 44 mm (Φ4.9" × 1.7")
Net Weight
0.36kg (0.79lb)
Material
Metal + Plastic
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection
4KV
Ingress Protection
IP66
Vandal Resistant
IK10
Reset Button
Supported

Category: IP Cameras

Sub Category: Fisheye Fixed Dome

Colour: white, Black, red, green,

Size: Large,
