Embeded Industrial Grade ChipsetHi3521D+2*4G DDR
- $400$485
- 120 in stock
SUPERIOR PRODUCTS
2 YEAR WARRANTY
45 DAY MONEY BACK
GUARANTEE
SUPPORT
FREE TECHNICAL SUPPORT
FREE SHIPPING
ON ALL ORDERS OVER $150
SKU:H.265/H.264
Category:Accessories
| Preview | 8*8MP-N@12fps; 8*5MP@12fps;8*5MN@20fps; 8*4MP@15fps; 8*3MP@18fps; 8*1080P/720P/960H@25fps 5-IN-1 |
| Decode Dapacity | 4*8MP-N@6fps;4*5MP@6fps; 4*4MP@6fps; 4*3MP@8fps; 4*1080P@15fps(5-IN-1); 8*720P@25fps(5-IN-1) |
| Various Mode Input | Coaxial: 8*8MP; 8*5MP; 8*4M; 8*1080P Hybrid: N*8MP(Coaxial)+ N*1080P(IP); IP: 16*960P; 8*1080P; 4*5MP |
| Recognition Mode | Auto / AHD / TVI / CVI / Custom |
| Motion Detection | testing areas can be set for each chanel；can set mutil-sensitivity |
| Audio Compression | G.711A |
| Two-way Intercom | Support |
| Record Mode | manual>alarm>motion detection>timing |
| Local Playback | 8CH (4*8MN@8fps/4*5MN@10fps /4*4M@8fps/ 4*3M@10fps /4*3MN@18fps /4*4MN/1080P@15fps 8*720P@25fps) |
| Record Retrieval | Fast retrieval, Browse retrieval, Time retrieval, event retrieval, Timeline retrieval,Smart retrieval |
| Intelligent Retrieval | Use different colors to distinguish if it has record or not at a certain time or certain channel |
| Space Occupation for Each Channel | 4CH:3MP/4MP/5MP--25G/15Gday*channel; 4MN/3MN/1080P 20/10/15G/day*channel；720P ~10G/day*channel；960H 6~10G/day*channel； Audio：691.2M/day*channel |
| Record Storage | Local hard disk/ network |
| Backup Mode | Network backup、USB HDD、USB record、SATA record |
| CMS Type | IE/Intelligent mobile phone/CMS |
| P2P | Support (IOS、Android、PC) |
| Mobile APP Function | Various image surveillance, audio monitor, mobile phone record, capture, pan-tilt control, remote record playback, equipment list storage |
| Camera OSD Control | support |
| PTZ Control | support |
| Firmware upgrade | support |
| Dynamic 3D Noise Reduction | Support automatic/manual setting of noise reduction parameters |

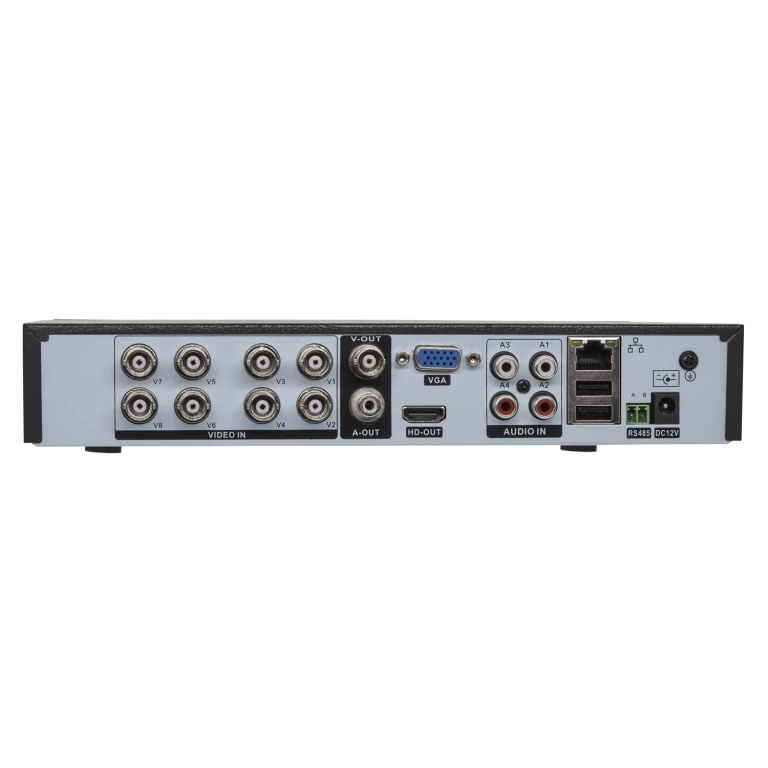

| Video Input | 8CH BNC |
| Video Output | 1 CH VGA(1080P)，1 CH HDMI(4K) |
| LOOP Output | No（can be extended to 1ch CVBS） |
| Audio Input | 4Ch RCA（can be extended to 8 CH) |
| Audio Output | 1CH RCA |
| Alarm Input | No(can be extended to 4ch) |
| Alarm Output | No(can be extended to 1ch) |
| Network Port | RJ45 10M/100M adapt to Ethernet interface |
| Pan-Tilt Control | 1 RS485(support various pan-tilt protocols); UTC( Upon the Coax) |
| USB Port | 2 USB 2.0 port |
| HDD Port | 2 SATA port（support up to 6T HDD） |
| Wireless Port | 4G、WIFI(extended with USB) |
| Remote Control | Optional |
| Power | 12V/2A |
| Consumption | less than 15W（excluding hardisk） |
| Temperature | -10 °C~ +55 °C |
| Working Humidity | 10%~90% |
| Size(W *D *H) | 250*233*43mm |
| Weight | N/W.(Kgs) 0.84Kg ; G/W (Kgs) 1.26Kg |
